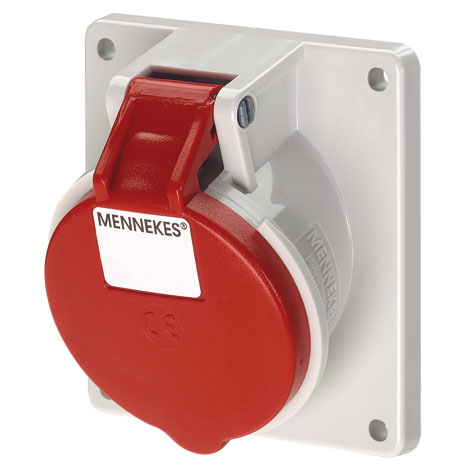

CEE-PANEL SOCKET 32A 4P 400V IP44

MENNEKES

Mfr Part #: 1496

Unit of Measure: PCS

– screw terminals, – 20° inclination, – 32A receptacles optional fitted with auxiliary contact

Description

PRODUCT OVERVIEW

Product ID 2007841
Mfr Part # 1496
Supplier MENNEKES
Class Panel-mounted CEE socket outlet
Unit of Measure PCS
Info & Guides DataSheet

SPECIFICATIONS

IEC-amperage 32 A
Amperage acc. UL/CSA (for UL-version) 30 A
Voltage acc. EN 60309-2 400 V (50+60 Hz) red
Number of poles 4
Clock hour position 6 h
Identification colour Red
Degree of protection (IP) IP44
Connection system Screwed terminal
Angle of plug Angled
Material Plastic
Military model no
Flange size vertical 100 mm
Drill hole distance vertical 95 mm
Flange size horizontal 92 mm
Drill hole distance horizontal 77 mm
