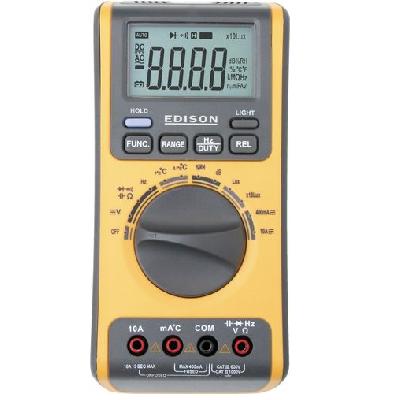

MULTIMETER & ENVIRONMENTAL TESTER 5-IN-1 10A 600V

CROMWELL

Mfr Part #: EDI5163460K

Unit of Measure: PCS

Relative measurement function. Diode testing facility. Clear display with LED backlight and data hold function. Auto power OFF’ and low power indicator. Digital display count up to 3999. Supplied with test probes, clamp-on test leads, temperature sensor probe, 9V battery, and Instructions manual. Conforms with IEC 1010, CAT II 1000V and CAT III 600V. Temperature: from -20 to 1000°C. Humidity: 30 – 90%. Sound: 35 – 100db. Illumination: 4000 – 40000 Lux. AC/DC: 600V. AC/DC: 10A. Resistance: 40MW. Capacitance: 200mF. Frequency: 1Hz to 200KHz. Dimensions (W x D x H): 165 x 65 x 230mm.

Description



PRODUCT OVERVIEW

Product ID 2050695
Mfr Part # EDI5163460K
Supplier CROMWELL
Class Multimeter
Unit of Measure PCS
Info & Guides

SPECIFICATIONS

Indication Digital
Max. voltage measuring range, AC 600 V
Max. voltage measuring range, DC 600 V
Max. current measuring range, AC 10 A
Max. current measuring range, DC 10 A
Capacitance measurement yes
Frequency measurement yes
Resistance test/diode test yes
