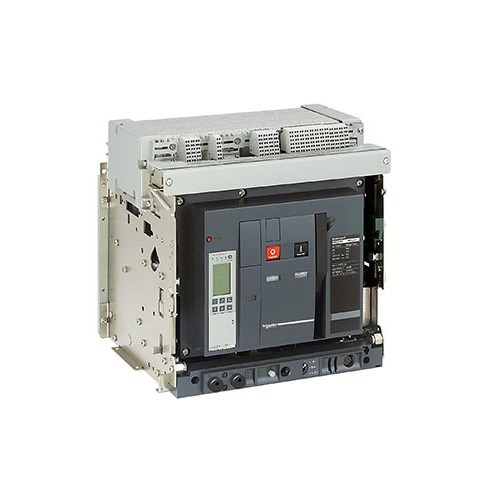

NW32HA ACB DRAWOUT TYPE HA 3P 3200A 55KA W/ S/TRIP & D/FRAME

SCHNEIDER ELECTRIC



Mfr Part #: NW32HA3DXXHS

Unit of Measure: PCS

Masterpact NW circuit breakers are equipped with Micrologic control units that offer built-in power and energy metering in addition to basic or advanced protection functions. Two sizes are sufficient to cover applications from 800 to 6300 A, with breaking capacity from 42 to 150 kA. The range comes with a wide choice of standardized accessories. The universal design of the Masterpact circuit breaker line allows most accessories to be used across the entire line. It enables standardization of electrical switchboards by providing peace of mind in terms of choice, installation, and operation.

Description

PRODUCT OVERVIEW

Product ID 2261902
Mfr Part # NW32HA3DXXHS
Supplier SCHNEIDER ELECTRIC
Class Power circuit-breaker for trafo/generator/installation protection
Unit of Measure PCS
Info & Guides DataSheet

SPECIFICATIONS

Rated permanent current Iu 3200 A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz 55 kA
Number of poles
