SCOPEMETER 2 CHANNEL 60MHZ COLOUR UNIVERSAL SCC, 4025248

FLUKE

Mfr Part #: FLUKE-190-062/UN/S

Unit of Measure: UNIT

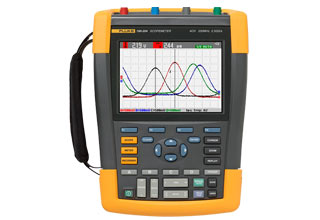

As the first two-channel portable scope safety rated CAT III 1000 V / CAT IV 600 V, the Fluke ScopeMeter® 190-062 combines an unprecedented level of performance, ruggedness, and portability with 60MHz bandwidth and real-time sampling rates up to 625 MS/s and 200 ps resolution to capture noise and other disturbances. This model feature deep memory up to 10,000 samples per channel, so you can examine very small parts of the waveform in detail, and it is IP-51 rated to withstand dust, drips, humidity, and wide temperature variations. Fluke ScopeMeter® test tools are hand-held battery operated, designed to meet the demands of field service professionals.

Description

PRODUCT OVERVIEW

Product ID 2013727
Mfr Part # FLUKE-190-062/UN/S
Supplier FLUKE
Class Oscilloscope
Unit of Measure UNIT
Info & Guides

SPECIFICATIONS

Monitor Colour/digital
Number of channels
Lowest input sensitivity 2 mV
Forming of reference signal yes
Selectable pulse width triggering yes
Measured value memory yes
Interface yes
Max. voltage measuring range, AC 1000 V
Max. voltage measuring range, DC 1000 V
Frequency measurement yes
Temperature measurement yes
Capacitance measurement no
Resistance test/diode test yes
