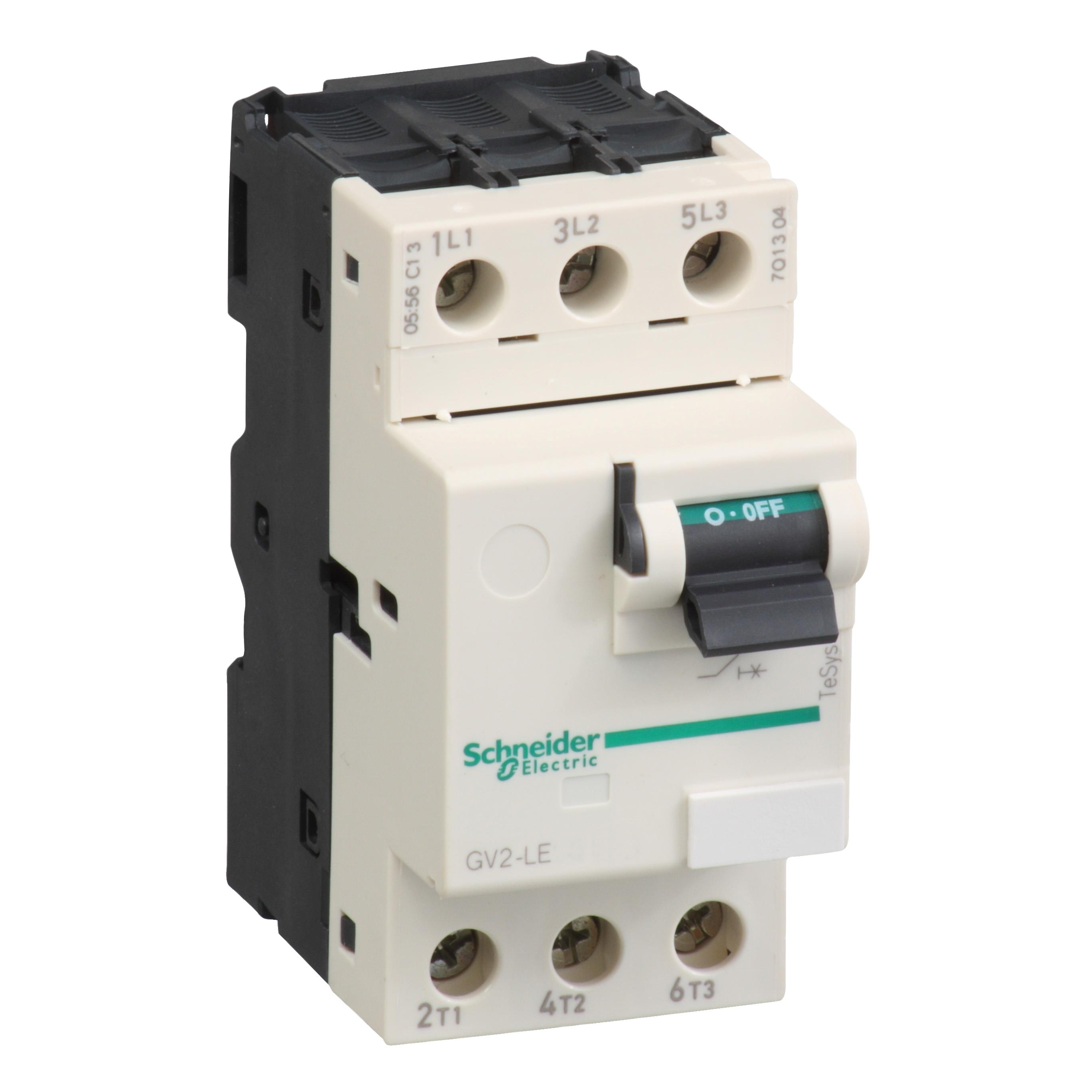

TESYS GV2 CIRCUIT BREAKER MAGNETIC 6.3A SCREW CLAMP TERMINAL

SCHNEIDER ELECTRIC



Mfr Part #: GV2LE10

Unit of Measure: PCS

Complete protection concentrated in a single product. Compact and simple to select, TeSys GV2 motor circuit-breakers are only 45 mm wide and are categorized according to their level of performance and functions: type of control, breaking capacity, motor protection and accessories. Applications: Industry, infrastructure, building, etc. Motor control and protection, in accordance with standards IEC 947-2 and IEC 947-4-1. Easily inserted in any configuration by screw or clip-fixing onto mounting rails

Description

PRODUCT OVERVIEW

Product ID 2006502
Mfr Part # GV2LE10
Supplier SCHNEIDER ELECTRIC
Class Motor protection circuit-breaker
Unit of Measure PCS
Info & Guides DataSheet

SPECIFICATIONS

Overload release current setting 0…0 A
Adjustment range undelayed short-circuit release 6.3…6.3 A
Phase failure sensitive yes
Switch off technique Magnetic
Rated operating voltage 690…690 V
Rated permanent current Iu 6.3 A
Rated operation power at AC-3, 230 V 0 kW
Rated operation power at AC-3, 400 V 2.2 kW
Type of electrical connection of main circuit Screw connection
Type of control element Rocker lever
Device construction Complete device in housing
With integrated auxiliary switch no
With integrated under voltage release no
Number of poles 3
Rated short-circuit breaking capacity lcu at 400 V, AC 100 kA
Degree of protection (IP) IP20
Height 89 mm
Width 45 mm
Depth 78.5 mm
