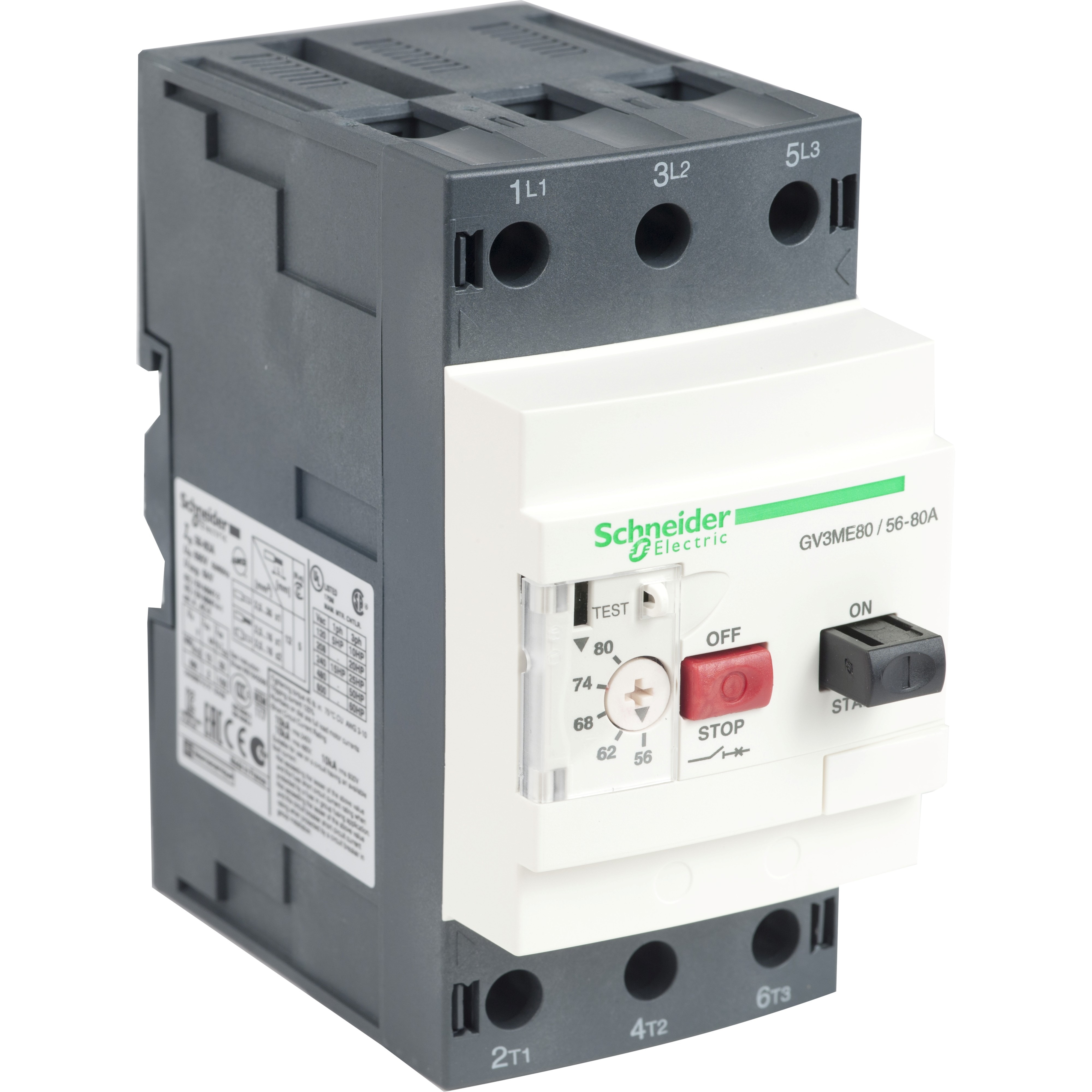

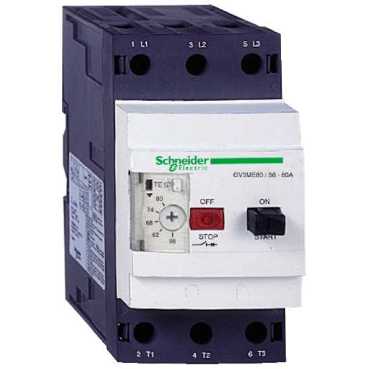

TESYS GV3 CIRCUIT BREAKER 56A-80A SCREW CLAMP TM TRIP UNIT

TESYS GV3 CIRCUIT BREAKER 56A-80A SCREW CLAMP TM TRIP UNIT

SCHNEIDER

Mfr Part #: GV3ME80

Unit of Measure: PCS

The main purpose of the TeSys GV3ME80 motor circuit breaker is to protect three-phase motors and cables against short-circuits and overloads. TeSys GV3ME80 thermal-magnetic motor circuit breaker for motor powers in the range 37kW to 55 kW under conventional thermal current from 56A to 80A. The environmental analysis was performed in conformity with ISO 14040.

Categories: Circuit Breakers, Circuit Safety Enhancement Brand: SCHNEIDER

Description

Description

PRODUCT OVERVIEW

Product ID	2011455
Mfr Part #	GV3ME80
Supplier	SCHNEIDER
Class	Motor protection circuit-breaker
Unit of Measure	PCS
Info & Guides	DataSheet

SPECIFICATIONS

Overload release current setting	56…80 A
Adjustment range undelayed short-circuit release	56…80 A
Switch off technique	Thermomagnetic
Rated permanent current Iu	80 A
Rated operation power at AC-3, 400 V	37 kW
Device construction	Built-in device fixed built-in technique
Number of poles	3
Rated short-circuit breaking capacity lcu at 400 V, AC	15 kA
Degree of protection (IP)	IP20
Height	120 mm
Width	61 mm
Depth	113 mm
