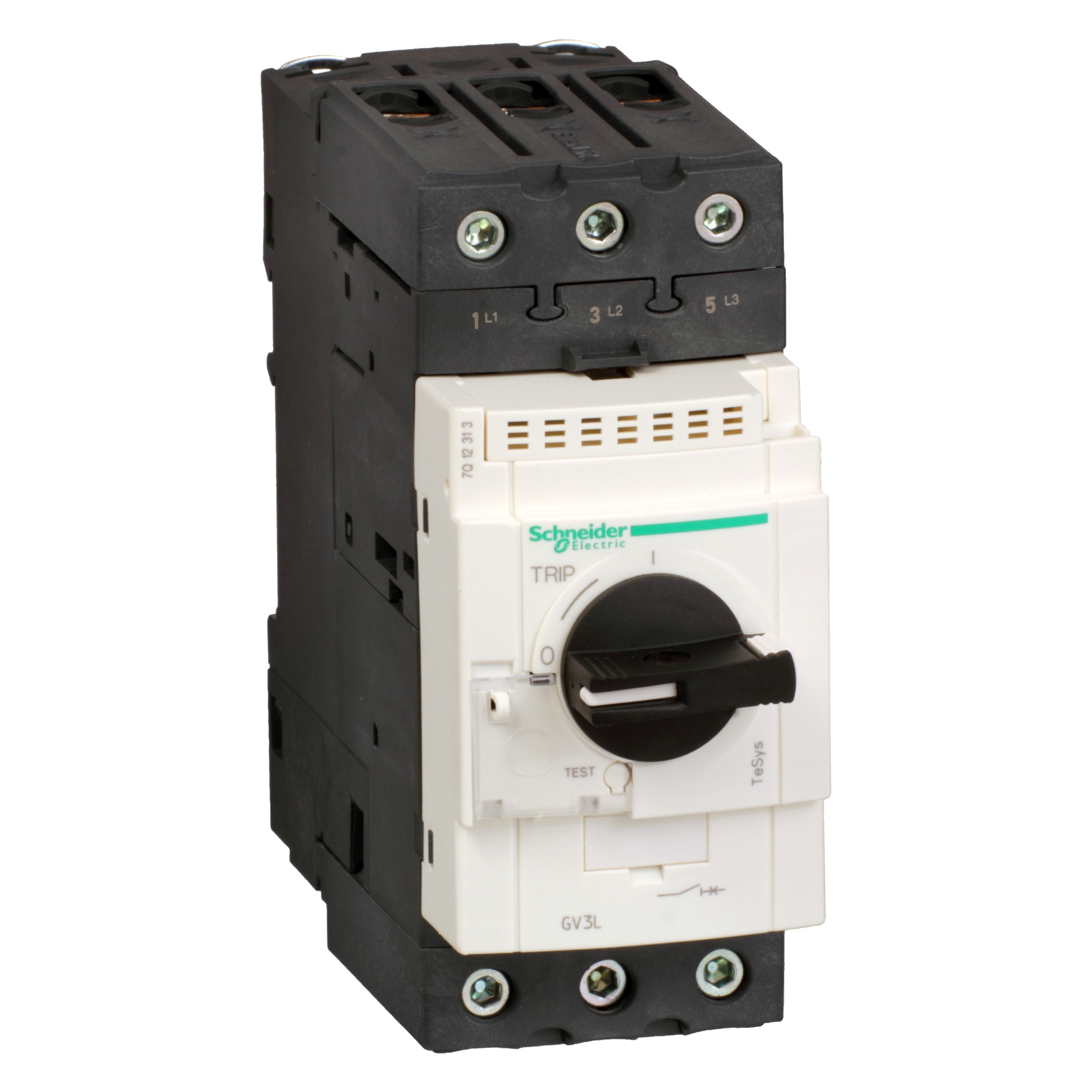

TESYS GV3 CIRCUIT BREAKER 65A EVERLINK BTR

SCHNEIDER



Mfr Part #: GV3L65

Unit of Measure: PCS

A stronger, safer, and long-term connection, Designed with the new and ingenious, EverLink* patented, power terminal system, The TeSys GV3 circuit-breaker provides a more reliable connection quality: the tightening pressure applied to the cables remains stable, strong and long-lasting even under tough conditions. Common additive parts to GV2 and GV3 ranges provide simplicity and significant installation time saving., Applications:, – Industry, infrastructures, buildings:, – Used for motor control and protection, complying with IEC 947-2 and IEC 947-4-1 standards.

Description

PRODUCT OVERVIEW

Product ID 2063786
Mfr Part # GV3L65
Supplier SCHNEIDER
Class Motor protection circuit-breaker
Unit of Measure PCS
Info & Guides DataSheet

SPECIFICATIONS

Switch off technique Magnetic
Rated permanent current Iu 65 A
Rated operation power at AC-3, 400 V 30 kW
Number of poles 3
Rated short-circuit breaking capacity lcu at 400 V, AC 100 kA
Degree of protection (IP) IP20
Height 132 mm
Width 55 mm
Depth 136 mm
